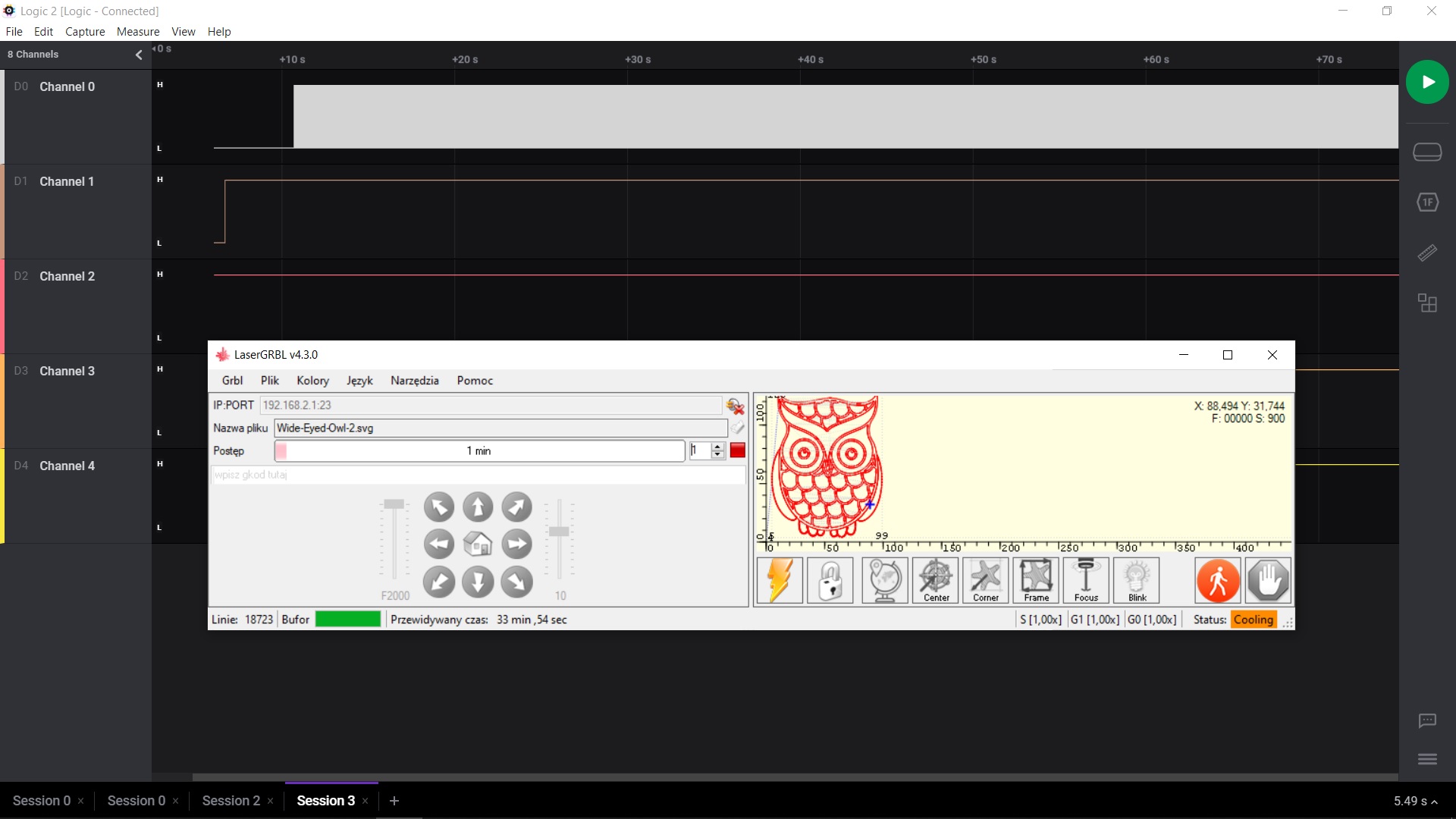

事实上，一切正常，但蓝色激光在冷却暂停期间并未关闭。暂停的时候也是一样，开启的时候也有一个峰值，导致烧一个洞。 通道 0-SPINDLE_OUTPUT_PIN GPIO_NUM_2 通道 1-SPINDLE_ENABLE_PIN GPIO_NUM_22

GRBL_VERSION “1.3a”;
GRBL_VERSION_BUILD = “20210424”
我尝试了其他预定义的机器。问题无处不在。
处理这个错误是非常危险的。
TXS0101 出现在 esp32_cnc_test_v4.1_schm.pdf 图中。他的“OE”连接到 Sp_En，但在此引脚上，信号的变化方式与激光引脚上的相同，并且在交通中断期间也会发生，因此无法使用。我正在寻求有关如何解决此问题的任何建议。
设置我的机器
[ZDV_LASER.zip]( https://github.com/bdring/Grbl_Esp32/files/6760041/ZDV_LASER.zip
et Jun 8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x1f (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO,clock div: 1
负载：0x3fff0018，len：4
负载：0x3fff001c，len：1216
ho 0 尾 12 房间 4
负载：0x40078000，len：9720
ho 0 尾 12 房间 4
负载：0x40080400，len：6352
条目 0x400806b8

[MSG:Grbl_ESP32 Ver 1.3a Date 20210424]
[MSG:Compiled with ESP32 SDK:v3.2.3-14-gd3e562907]
[MSG:Using machine:ESP32_ZDV_LASER]
[MSG:Axis count 3]
[MSG:RMT Steps]
[MSG: Init Motors]
[MSG:Global stepper disable pin:GPIO(13)]
[MSG:X Axis Standard Stepper Step:GPIO(12) Dir:GPIO(14) Disable:None Limits(-210.000,0.000)]
[MSG:Y Axis Standard Stepper Step:GPIO(26) Dir:GPIO(15) Disable:None Limits(-297.000,0.000)]
[MSG:PWM主轴输出:GPIO(2), Enbl:GPIO(22), Dir:GPIO(21) )，频率：5000Hz，分辨率：13bits]

[MSG：本地访问点 GRBL_ESP 已启动，192.168.4.1]
[MSG：Captive Portal 已启动]
[MSG：HTTP 已启动]
[MSG：TELNET 已启动 23]
[MSG：X 轴限位开关在引脚 GPIO(5)]
[MSG： GPIO(4) 引脚上的 Y 轴限位开关]
[MSG:GPIO(18) 引脚上的 Z 轴限位开关]

Grbl 1.3a [‘$’ 寻求帮助]
$Sta/SSID=Orange_Swiatlowod_B698
$Sta/Password=******
$Sta/IPMode=DHCP
$Sta/IP=0.0.0.0
$Sta/Gateway=0.0.0.0
$ Sta/Netmask=0.0.0.0
$AP/SSID=GRBL_ESP
$AP/Password=******
$AP/IP=192.168.2.1
$AP/Channel=1
$System/Hostname=grblesp
$Http/Enable=ON
$Http/Port=80
$Telnet/Enable=ON
$Telnet/Port=23
$Radio/Mode=AP
$Bluetooth/Name=btgrblesp
$Notification/Type=NONE
$Notification/T1=
$Notification/T2=
$Notification/TS =
$Message/Level=信息
$User/Macro0=
$User/Macro1=
$User/Macro2=
$User/Macro3=
$Homing/Cycle0=Z
$Homing/Cycle1=XY
$Homing/Cycle2=
$Homing/Cycle3=
$Homing/Cycle4=
$Homing/Cycle5=
$Report/StallGuard=
$Stepper/Enable/Delay=0
$Stepper/Direction/延迟=0
$Stepper/Pulse=10
$Stepper/IdleTime=255
$Stepper/StepInvert=
$Stepper/DirInvert=
$Stepper/EnableInvert=Off
$Limits/Invert=Off
$Probe/Invert=Off
$Report/Status=1
$ GCode/JunctionDeviation=0.001
$GCode/ArcTolerance=0.002
$Report/Inches=Off
$Firmware/Build=
$Limits/Soft=Off
$Limits/Hard=Off
$Homing/Enable=Off
$Homing/DirInvert=
$Homing/Squared=
$Homing/Feed=100.000
$Homing/Seek=800.000
$Homing /Debounce=250.000
$Homing/Pulloff=2.000
$GCode/MaxS=1000.000
$GCode/MinS=0.000
$Laser/FullPower=1000
$GCode/LaserMode=On
$GCode /Line1=
$GCode/Line0=
$Spindle/Enable/Invert=Off
$Spindle/Enable/OffWithSpeed=Off
$Coolant/Delay/TurnOn=1.000
$Spindle/Delay/SpinDown=0.000
$Spindle/Delay/SpinUp=0.000
$Spindle /PWM/Invert=Off
$Spindle/PWM/Frequency=5000.000
$Spindle/PWM/Off=0.000
$Spindle/PWM/Min=0.000
$Spindle/PWM/Max=100.000
$Spindle/Type=PWM
$X/StepsPerMm=160.000
$Y/StepsPerMm=160.000
$Z/StepsPerMm=160.000
$A/StepsPerMm=8.000
$B/StepsPerMm=8.000
$C/StepsPerMm=8.000
$X/MaxRate=2000.000
$Y/MaxRate=2000.000
$Z/MaxRate=500.000
$A/MaxRate=80.000
$B /MaxRate=80.000
$C/MaxRate=80.000
$X/Acceleration=200.000
$Y/Acceleration=200.000
$Z/Acceleration=10.000
$A/Acceleration=200.000
$B/Acceleration=200.000
$C/Acceleration=200.000
$X/Home /Mpos=0.000
$Y/Home/Mpos=0.000
$Z/Home/Mpos=0.000
$A/Home/Mpos=0.000
$B/Home/Mpos=0.000
$C/Home/Mpos=0.000
$X/MaxTravel=210.000
$Y/MaxTravel=297.000
$Z/MaxTravel=200.000
$A/MaxTravel=0.000
$B/MaxTravel=0.000
$C/MaxTravel=0.000
$X/Current/Run=0.250
$Y/Current/Run=0.250
$Z/Current/Run=0.250
$A/Current/Run=0.250
$B/Current/Run=0.250
$C/Current/Run=0.250
$X/Current/Hold=0.125
$Y/Current/Hold=0.125
$Z/Current/Hold=0.125
$A/Current/Hold=0.125
$B /Current/Hold=0.125
$C/Current/Hold=0.125
$X/Microsteps=16
$Y/Microsteps=16
$Z/Microsteps=16
$A/Microsteps=16
$B/Microsteps=16
$C/Microsteps=16
$X/StallGuard=16
$Y/StallGuard=16
$Z/StallGuard=16
$A/StallGuard=16
$B/StallGuard=16
$C/StallGuard=16
$Errors/Verbose=Off
ok
ok
