问题：基于测试形式的问题报告 #428

推推 grbl 2年前 (2023-02-05) 142次浏览

关闭

MitchBradley 打开了这个问题 2022 年 5 月 16 日 · 0 条评论

合作者

米奇布拉德利 评论了 2022 年 5 月 16 日

控制板

壁虎冲击波 v0.0

机器描述

带有 GeckoDrive 的 Geometric Robotics Pro 2×2 龙门铣床。用于主轴的 DeWalt 1.75 HP 刳刨机。NEMA 23 电机。没有终点站。

配置文件

name: "Putter Router"
board: "Gecko Blaster v1"

use_line_numbers: true

stepping:
  engine: RMT
  idle_ms: 255
  dir_delay_us: 4
  pulse_us: 4
  disable_delay_us: 0

start:
  must_home: false

spi:
  miso_pin: gpio.19
  mosi_pin: gpio.23
  sck_pin: gpio.18

sdcard:
  cs_pin: gpio.5
  card_detect_pin: NO_PIN

axes:
  x:
    steps_per_mm: 400
    max_rate_mm_per_min: 2000
    acceleration_mm_per_sec2: 100
    max_travel_mm: 600
    homing:
      cycle: 2
      positive_direction: true

    motor0:
      limit_pos_pin: gpio.34:low
      stepstick:
        direction_pin: gpio.25
        step_pin: gpio.27

  y:
    steps_per_mm: 400
    max_rate_mm_per_min: 2000
    acceleration_mm_per_sec2: 100
    max_travel_mm: 600
    homing:
      cycle: 2
      positive_direction: true

    motor0:
      limit_pos_pin: gpio.35:low
      stepstick:
        direction_pin: gpio.12
        step_pin: gpio.32

  z:
    steps_per_mm: 400
    max_rate_mm_per_min: 2000
    acceleration_mm_per_sec2: 25
    max_travel_mm: 110
    homing:
      cycle: 1
      positive_direction: true

    motor0:
      limit_pos_pin: gpio.36:low
      stepstick:
        direction_pin: gpio.14
        step_pin: gpio.17

probe:
  pin: gpio.39

启动消息

$/axes/x/max_travel_mm=600.000
$/axes/x/homing/mpos_mm=0.000
$/axes/x/homing/positive_direction=true
$/axes/y/max_travel_mm=600.000
$/axes/y/homing/mpos_mm=0.000
$/axes/y/homing/positive_direction=true
[GC:G0 G54 G17 G20 G90 G94 M5 M9 T3 F889 S9000]
$ss
[MSG:INFO: FluidNC v3.3.0 (Devt-e5ef0d4-dirty)]
[MSG:INFO: Compiled with ESP32 SDK:v3.3.5-1-g85c43024c]
[MSG:INFO: Configuration file:gr3_2000.flnc]
[MSG:INFO: Machine Putter Router]
[MSG:INFO: Board Gecko Blaster v1]
[MSG:INFO: SPI SCK:gpio.18 MOSI:gpio.23 MISO:gpio.19]
[MSG:INFO: SD Card cs_pin:gpio.5 dectect:NO_PIN]
[MSG:INFO: Stepping:RMT Pulse:4us Dsbl Delay:0us Dir Delay:4us Idle Delay:255ms]
[MSG:INFO: Axis count 3]
[MSG:INFO: Axis X (-600.000,0.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     stepstick Step:gpio.27 Dir:gpio.25 Disable:NO_PIN]
[MSG:INFO:     Pos Limit gpio.34:low]
[MSG:INFO: Axis Y (-600.000,0.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     stepstick Step:gpio.32 Dir:gpio.12 Disable:NO_PIN]
[MSG:INFO:     Pos Limit gpio.35:low]
[MSG:INFO: Axis Z (-110.000,0.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     stepstick Step:gpio.17 Dir:gpio.14 Disable:NO_PIN]
[MSG:INFO:     Pos Limit gpio.36:low]
[MSG:INFO: Kinematic system: Cartesian]
[MSG:INFO: Using spindle NoSpindle]
[MSG:INFO: Probe Pin: gpio.39:low]
[MSG:INFO: Connecting to STA SSID:CampOlinda]
[MSG:INFO: Connecting.]
[MSG:INFO: Connecting..]
[MSG:INFO: Connected - IP is 192.168.68.122]
[MSG:INFO: WiFi on]
[MSG:INFO: Start mDNS with hostname:http://fluidnc.local/]
[MSG:INFO: SSDP Started]
[MSG:INFO: HTTP started on port 80]
[MSG:INFO: Telnet started on port 23]

用户界面软件

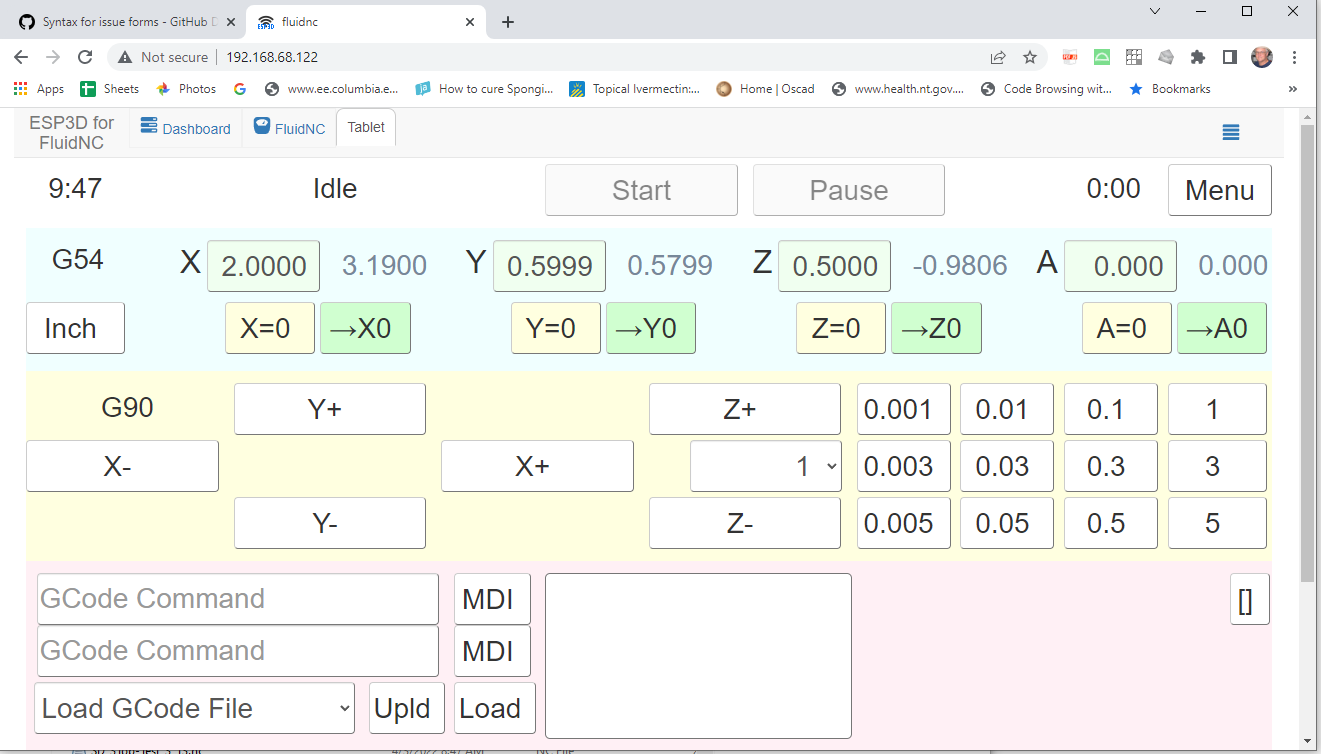

网页界面

发生了什么？

我运行了一个 GCode 程序并预计它会削减，但库存仍未削减。

其他信息

There was no cutting tool in the spindle.  Should I have put one in?

MitchBradley在完成时关闭了它 2022 年 5 月 16 日
