board: MKS-DLC32
name: SWOLE-CNC
meta: V2.6.2 (2202.10.11) Dax Liniere, originally by Skorpi

kinematics:
  Cartesian:

stepping:
  engine: I2S_STATIC
  idle_ms: 0
  pulse_us: 4
  dir_delay_us: 1
  disable_delay_us: 0

axes:
  shared_stepper_disable_pin: I2SO.0
  x:
    steps_per_mm: 800.000
    #was 802.341
    max_rate_mm_per_min: 1600.000
# was 1500.000
    acceleration_mm_per_sec2: 80.000
    max_travel_mm: 302.000
    soft_limits: true
    homing:
      cycle: 2
      positive_direction: false
      mpos_mm: 0.000
      feed_mm_per_min: 20.000
      seek_mm_per_min: 200.000
# was 100 in first SWOLE-CNC iteration running MKS firmware
      settle_ms: 500
      seek_scaler: 1.100
      feed_scaler: 1.100

    motor0:
      limit_neg_pin: gpio.36
      limit_pos_pin: gpio.34
      limit_all_pin: NO_PIN
      hard_limits: true
      pulloff_mm: 1.000
      stepstick:
        step_pin: I2SO.1
        direction_pin: I2SO.2:low
        disable_pin: NO_PIN
        ms1_pin: NO_PIN
        ms2_pin: NO_PIN
        ms3_pin: NO_PIN
        reset_pin: NO_PIN

  y:
    steps_per_mm: 802.322
    #tested 806.062, features too small
    max_rate_mm_per_min: 1600.000
    acceleration_mm_per_sec2: 80.000
# was 300.000
    max_travel_mm: 186.000
    soft_limits: true
    homing:
      cycle: 2
      positive_direction: false
      mpos_mm: 0.000
      feed_mm_per_min: 20.000
      seek_mm_per_min: 200.000
      settle_ms: 500
      seek_scaler: 1.100
      feed_scaler: 1.100

    motor0:
      limit_neg_pin: gpio.35
      limit_pos_pin: gpio.23
      #this pin doesn't have the same input circuitry as the 3 dedicated on-board limit switch inputs
      limit_all_pin: NO_PIN
      hard_limits: true
      pulloff_mm: 1.000
      stepstick:
        step_pin: I2SO.5
        direction_pin: I2SO.6:low
        disable_pin: NO_PIN
        ms1_pin: NO_PIN
        ms2_pin: NO_PIN
        ms3_pin: NO_PIN
        reset_pin: NO_PIN
  z:
    steps_per_mm: 802.497
    max_rate_mm_per_min: 1000.000
    acceleration_mm_per_sec2: 50.000
# was 500.000
    max_travel_mm: 100
#46.000
    soft_limits: true
    homing:
      cycle: 1
      positive_direction: true
      mpos_mm: 0.000
      feed_mm_per_min: 20.000
      seek_mm_per_min: 100.000
      settle_ms: 500
      seek_scaler: 1.100
      feed_scaler: 1.100

    motor0:
      limit_pos_pin: gpio.18
      #this pin doesn't have the same input circuitry as the 3 dedicated on-board limit switch inputs
      hard_limits: true
      pulloff_mm: 1.000
      stepstick:
        step_pin: I2SO.3
        direction_pin: I2SO.4:low
        disable_pin: NO_PIN
        ms1_pin: NO_PIN
        ms2_pin: NO_PIN
        ms3_pin: NO_PIN
        reset_pin: NO_PIN

i2so:
  bck_pin: gpio.16
  data_pin: gpio.21
  ws_pin: gpio.17

spi:
  miso_pin: gpio.12
  mosi_pin: gpio.13
  sck_pin: gpio.14

sdcard:
  cs_pin: gpio.15
  card_detect_pin: NO_PIN
# This could be GPIO.39, but Card Detect has no supported functions in FluidNC

control:
  safety_door_pin: gpio.33:low:pu
# Does the start pin need to be wired to the other side of the switch??
  cycle_start_pin: NO_PIN
  feed_hold_pin: NO_PIN
  reset_pin: NO_PIN
  macro0_pin: gpio.19:low:pu
  macro1_pin: NO_PIN
  macro2_pin: NO_PIN
  macro3_pin: NO_PIN

macros:
  startup_line0:
  startup_line1:
  macro0: $X&$H
#unlock and home XYZ

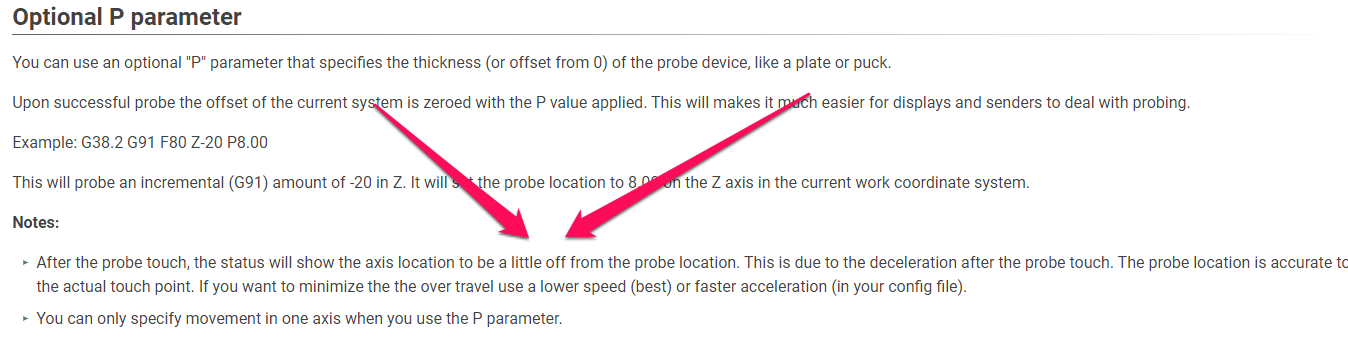

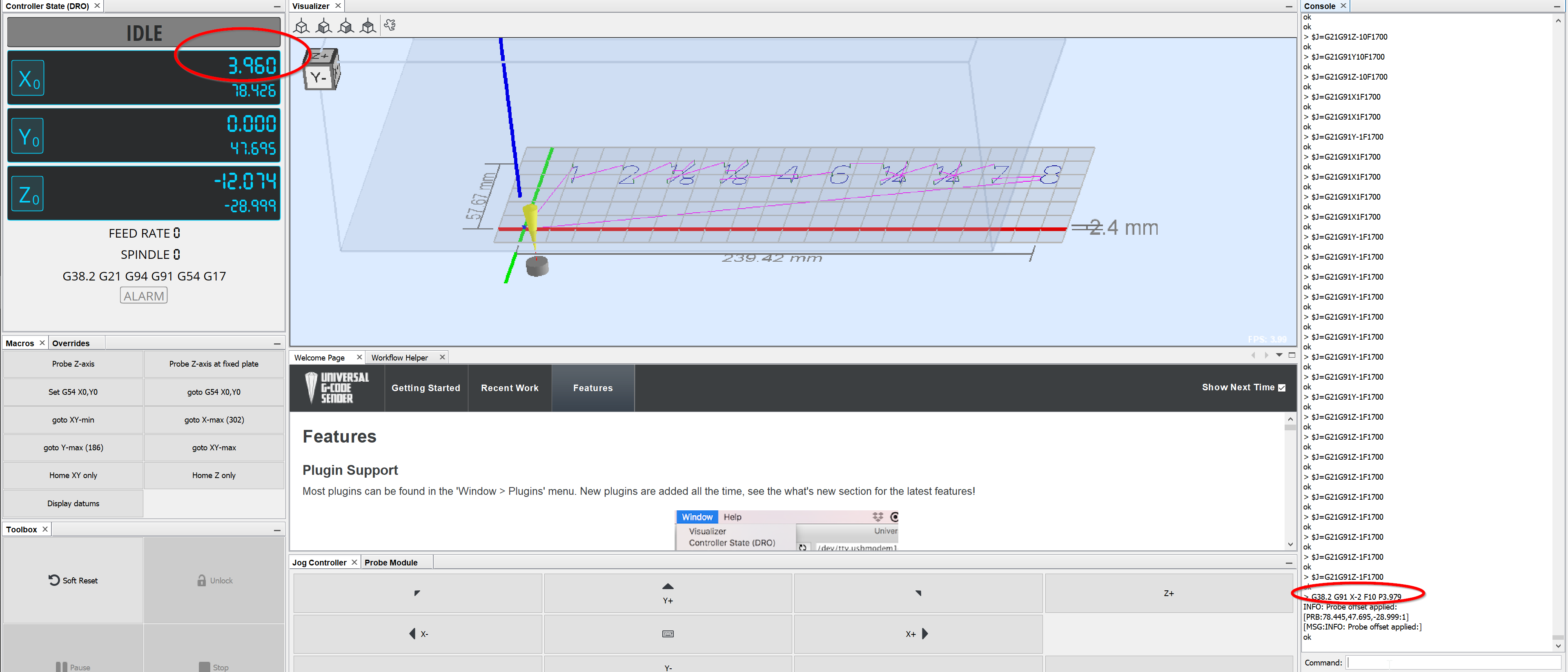

  macro1: G38.2 G91 Z-46 F100&G0 Z1&G38.2 G91 Z-2 F50&G10 L20 P1 Z4.985&G10 L20 P2 Z4.985&G10 L20 P3 Z4.985&G10 L20 P4 Z4.985&G10 L20 P5 Z4.985&G10 L20 P6 Z4.985&G53 G0 Z0
#z-probe
  macro2:
  macro3: $SD/Run=lasertest.gcode

coolant:
  flood_pin: gpio.0
# continuous air
  mist_pin:  gpio.4
# pulsed air
  delay_ms: 0

probe:
  pin: gpio.22:low
  check_mode_start: true


10V:
# Spindle
  direction_pin: NO_PIN
  forward_pin: NO_PIN
  reverse_pin: NO_PIN
  output_pin: gpio.32
  enable_pin: gpio.5:low
  pwm_hz: 5000
  disable_with_s0: false
  s0_with_disable: false
  off_on_alarm: true
#switch off spindle when in alarm state
  spinup_ms: 10000
  spindown_ms: 12000
  tool_num: 0
  speed_map: 0=0% 0=25% 5868=25% 23237=99% 24000=100%
#DLC32 Spindle TTL max output voltage is 4.89v, so it can never reach 24000rpm/400Hz


#pwm:
#  direction_pin: NO_PIN
#  output_pin: gpio.32
#  enable_pin: gpio.5:low
#  pwm_hz: 5000
#  disable_with_s0: false
#  s0_with_disable: true
#  spinup_ms: 10000
#  spindown_ms: 12000
#  tool_num: 0
#  speed_map: 0=0% 0=25% 5868=25% 23237=99% 24000=100%


user_outputs:
  analog0_pin: NO_PIN
  analog1_pin: NO_PIN
  analog2_pin: NO_PIN
  analog3_pin: NO_PIN
  analog0_hz: 5000
  analog1_hz: 5000
  analog2_hz: 5000
  analog3_hz: 5000
  digital0_pin: NO_PIN
  digital1_pin: NO_PIN
  digital2_pin: NO_PIN
  digital3_pin: NO_PIN

start:
  must_home: false
# Pins that could be used: 0(SDA), 4(SCL), 5, 18, 19, 22, 23, 25, 26, 27, 32 (TTL spindle control), 33, 39, I2SO.7
# Pins not currently in use: 25 (TMC_CS_Y), 26 (TMC_CS_X), 27 (TMC_CS_Z), (39 SD card detect), I2SO.7
