问题：FluidCNC 不连接到 Ligthburn v1.2.0.4 #695

sns5400

控制板

DLC32

机器描述

国产 C02 40 瓦激光切割机和 pcb 钻/铣床。
Space 600mmx300mm Zaxis 150mm
板 DLC – ESP32

输入电路

没有反应

配置文件

name: "ESP32 Dev Controller V4"
board: "ESP32 Dev Controller V4"

stepping:
  engine: RMT
  idle_ms: 250
  dir_delay_us: 1
  pulse_us: 2
  disable_delay_us: 0

axes:
  shared_stepper_disable_pin: gpio.13:high

  x:
    steps_per_mm: 26.683
    max_rate_mm_per_min: 6000
    acceleration_mm_per_sec2: 75
    max_travel_mm: 590
    homing:
      cycle: 2
      mpos_mm: 5
      positive_direction: false
      feed_mm_per_min: 100
      seek_mm_per_min: 2000
      settle_ms: 500
      seek_scaler: 1.100
      feed_scaler: 1.100

    motor0:
      limit_all_pin: gpio.17:low:pu
      stepstick:
        direction_pin: gpio.14
        step_pin: gpio.12
    motor1:
      null_motor:

  y:
    steps_per_mm: 72.802
    max_rate_mm_per_min: 6000
    acceleration_mm_per_sec2: 75
    max_travel_mm: 290
    homing:
      cycle: 2
      mpos_mm: 5
      positive_direction: true
      feed_mm_per_min: 100
      seek_mm_per_min: 2000
      settle_ms: 500
      seek_scaler: 1.100
      feed_scaler: 1.100

    motor0:
      limit_all_pin: gpio.4:low:pu
      stepstick:
        direction_pin: gpio.15
        step_pin: gpio.26
    motor1:
      null_motor:

  z:
    steps_per_mm: 1195.64
    max_rate_mm_per_min: 550
    acceleration_mm_per_sec2: 25
    max_travel_mm: 100
    homing:
      cycle: 1
      mpos_mm: 10
      positive_direction: true
      feed_mm_per_min: 50
      seek_mm_per_min: 200
      settle_ms: 500
      seek_scaler: 1.100
      feed_scaler: 1.100

    motor0:
      limit_all_pin: gpio.16:low:pu
      stepstick:
        direction_pin: gpio.33
        step_pin: gpio.27
    motor1:
      null_motor:

spi:
  miso_pin: gpio.19
  mosi_pin: gpio.23
  sck_pin: gpio.18

sdcard:
  cs_pin: gpio.5
  card_detect_pin: NO_PIN

control:
  safety_door_pin: NO_PIN
  reset_pin: gpio.34:low
  feed_hold_pin: NO_PIN
  cycle_start_pin: NO_PIN
  macro0_pin: NO_PIN
  macro1_pin: NO_PIN
  macro2_pin: NO_PIN
  macro3_pin: NO_PIN

coolant:
  flood_pin: gpio.25
  mist_pin:  gpio.21


probe:
  pin: gpio.32:low:pu

PWM:
  pwm_hz: 5000
  output_pin: gpio.2
  enable_pin: gpio.22
  direction_pin: NO_PIN
  disable_with_s0: false
  s0_with_disable: true
  spinup_ms: 0
  spindown_ms: 0
  tool_num: 0
  speed_map: 0=0% 10000=100%

启动消息

FluidNC v1.2.0 using COM3
Exit: Ctrl-C, Ctrl-Q or Ctrl-], Clear screen: CTRL-W
Upload: Ctrl-U, Reset ESP32: Ctrl-R, Send Override: Ctrl-O
Resetting MCU
ets Jun  8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x17 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO, clock div:1
load:0x3fff0030,len:1184
load:0x40078000,len:12812
load:0x40080400,len:3032
entry 0x400805e4

[MSG:INFO: FluidNC v3.6.3]
[MSG:INFO: Compiled with ESP32 SDK:v4.4.1-1-gb8050b365e]
[MSG:INFO: Local filesystem type is spiffs]
[MSG:INFO: Configuration file:my-config.yaml]
[MSG:INFO: Machine ESP32 Dev Controller V4]
[MSG:INFO: Board ESP32 Dev Controller V4]
[MSG:INFO: SPI SCK:gpio.18 MOSI:gpio.23 MISO:gpio.19]
[MSG:INFO: SD Card cs_pin:gpio.5 detect:NO_PIN]
[MSG:INFO: Stepping:RMT Pulse:2us Dsbl Delay:0us Dir Delay:1us Idle Delay:250ms]
[MSG:INFO: Axis count 3]
[MSG:INFO: Shared stepper disable gpio.13]
[MSG:INFO: Axis X (0.000,590.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     stepstick Step:gpio.12 Dir:gpio.14 Disable:NO_PIN]
[MSG:INFO:  X All Limit gpio.17:low:pu]
[MSG:INFO:   Motor1]
[MSG:INFO: Axis Y (0.000,290.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     stepstick Step:gpio.26 Dir:gpio.15 Disable:NO_PIN]
[MSG:INFO:  Y All Limit gpio.4:low:pu]
[MSG:INFO:   Motor1]
[MSG:INFO: Axis Z (-90.000,10.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     stepstick Step:gpio.27 Dir:gpio.33 Disable:NO_PIN]
[MSG:INFO:  Z All Limit gpio.16:low:pu]
[MSG:INFO:   Motor1]
[MSG:INFO: Kinematic system: Cartesian]
[MSG:INFO: PWM Spindle Ena:gpio.22:low:pu Out:gpio.2:pu Dir:NO_PIN Freq:5000Hz Period:8191]
[MSG:INFO: Using spindle PWM]
[MSG:INFO: Flood coolant gpio.25]
[MSG:INFO: Mist coolant gpio.21]
[MSG:INFO: Probe Pin: gpio.32:low:pu]
[MSG:INFO: Connecting to STA SSID:Home-ON7JT]
[MSG:INFO: Connecting.]
[MSG:INFO: Connecting..]
[MSG:INFO: Connected - IP is 192.168.1.186]
[MSG:INFO: WiFi on]
[MSG:INFO: Start mDNS with hostname:http://fluidnc.local/]
[MSG:INFO: SSDP Started]
[MSG:INFO: HTTP started on port 80]
[MSG:INFO: Telnet started on port 23]

Grbl 3.6 [FluidNC v3.6.3 (wifi) '$' for help]
[MSG:INFO: '$H'|'$X' to unlock]
[MSG:INFO: Caution: Unlocked]
ok
ok

用户界面软件

莱格本

发生了什么？

在我使用 ligthburn 版本 0.9.16 之前，一切正常，没有问题。然后是 ligthburn 0.9.16 以上的新版本，问题开始了。我等了 1 年，以为它会修好，但什么也没有。

更新到 Ligthburn 版本 1.2.0.4 后，我再次开始寻找解决方案，但直到现在总是出现同样的问题。
当我降级到 ligthburn 0.9.16 时，一切都会再次工作。

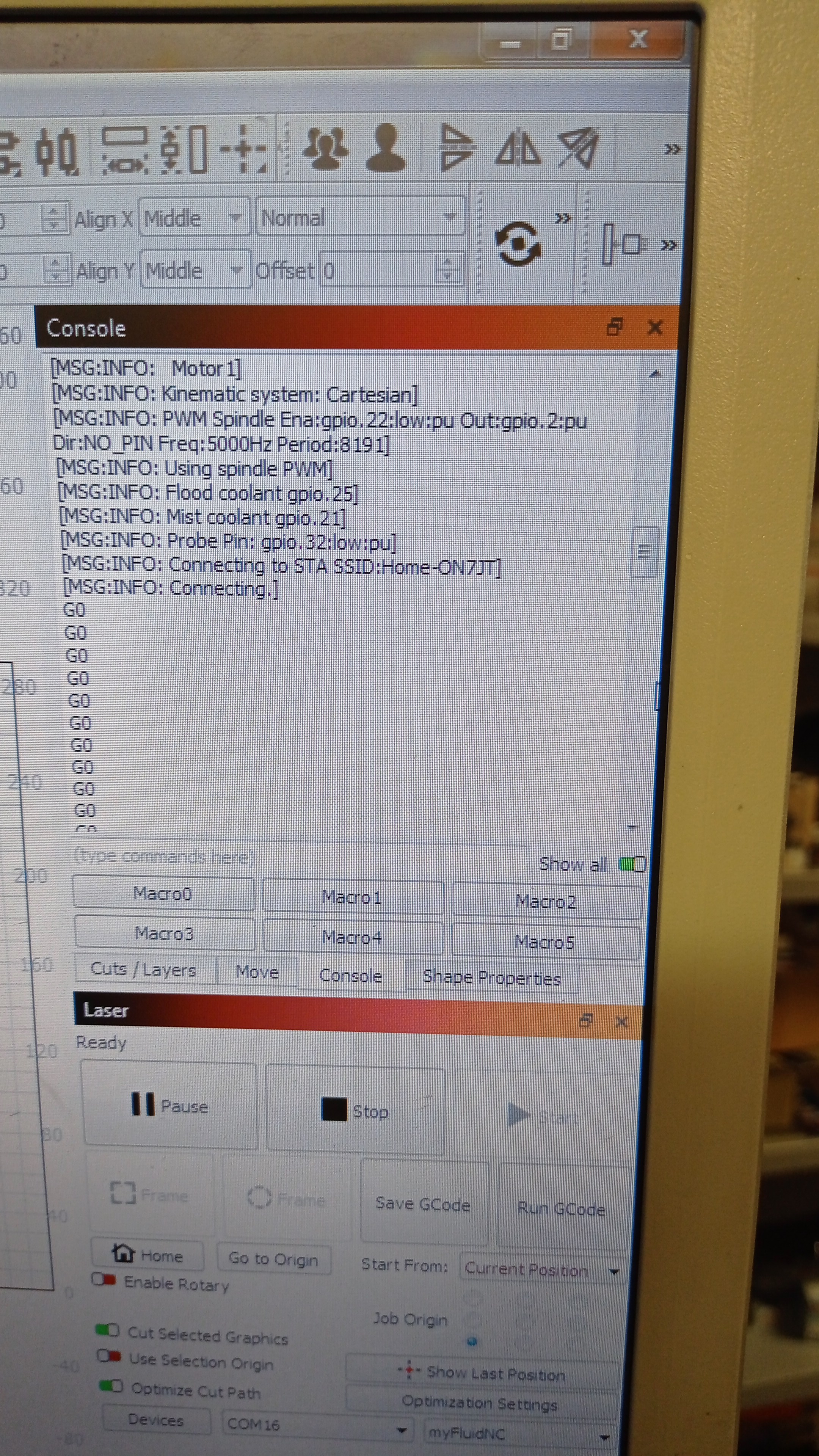

正常情况下，当我启动 ligthburn 时，会有一个自动归位 cyclus，但现在一切看起来都被阻塞了，并且 ligthburn 会发送连续的 G0。

其他信息

是否有其他人可以使用大于 0.9.16 的 ligthburn 版本和最新的 fluidCNC 而没有连接问题？

sns5400完成后关闭 2022 年 11 月 9 日
